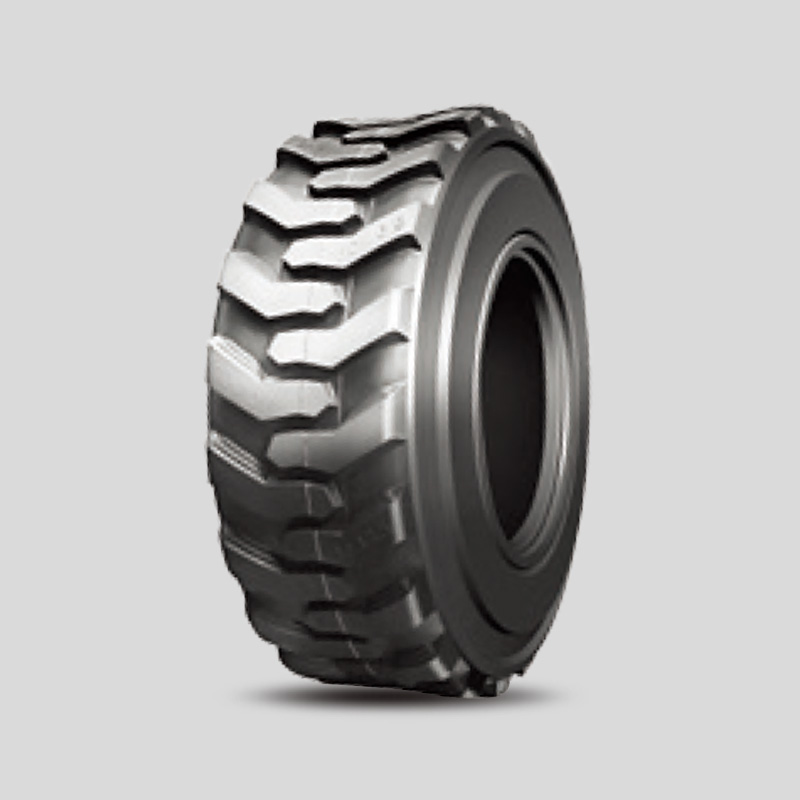

The L-2B Skid Steer Loader Tire is a specialized tire designed for skid steer loaders, also known as skid loaders or skid steer loader machines. It is a key component of the equipment, enabling efficient and safe operation in various industrial and construction applications.
| Model | Specification | Ply Rating | Tire Type | Rim | Inflated Size |
Inflation Pressure (kPa) |
Maximum Load | Valve Model | |
|---|---|---|---|---|---|---|---|---|---|
|
Outer Diameter (mm) |
Section Width (mm) |
10km/h | |||||||
| L-2B | 5.70-12NHS | 8 | TL | 4.50-I-70 | 570 | 146 | 620 | 835 | TR13 |
| 23x8.50-12NHS | 6 | TL | 4.50-I-70 | 574 | 213 | 340 | 820 | TR13CW | |
| 8 | TL | 450 | 960 | ||||||
| 10 | TL | 650 | 1080 | ||||||
| 27x8.50-15NHS | 8 | TL | 7JA | 660 | 216 | 410 | 1100 | TR15 | |
| 10 | TL | 480 | 1200 | ||||||
| 10-16.5NHS | 8 | TL | 8.25 | 773 | 264 | 410 | 1880 | TR15CW | |
| 10 | TL | 520 | 2135 | ||||||
| 12-16.5NHS | 10 | TL | 9.75 | 831 | 307 | 450 | 2540 | TR15CW | |
| 12 | TL | 550 | 2865 | ||||||
| 14-17.5NHS | 14 | TL | 10.50 | 921 | 349 | 650 | 3875 | TR15 | |
| 16 | TL | 620 | 4125 | ||||||
• Tire Size: 14-17.5NHS
• Rim Size: 17.5 inch
• Ply Rating: 14/16
• Tire Type: Tubeless (TL)
• Rim (Outer Diameter): 10.50
• Outer Diameter (mm): 921
• Section Width (mm): 349
• Inflation Pressure (kPa): 650/620
• Maximum Load (at 10km/h): 3875/4125
• Valve Model: TR15
• Bias Belted Design: The L-2B Skid Steer Loader Tire features a bias belted design, providing stability and durability for skid steer loader operations.
• L-2B Pattern: The tread pattern is specifically designed for skid steer loaders, offering excellent traction and grip in various terrains and conditions.
• Tubeless Construction: The tubeless design eliminates the need for inner tubes, reducing the risk of punctures and simplifying maintenance.
The L-2B Skid Steer Loader Tire is suitable for a wide range of skid steer loader applications, including but not limited to:
• Infrastructure Construction: Ideal for earthmoving, grading, and other construction tasks.
• Industrial Use: Suitable for material handling, warehousing, and other industrial applications.
• Landscaping: Great for landscaping projects, including garden maintenance and lawn care.
• Durability: The bias belted design and high-quality materials ensure long-lasting performance.
• Versatility: The L-2B tread pattern provides excellent traction in various terrains, making it suitable for a wide range of applications.
• Ease of Maintenance: The tubeless design simplifies maintenance and reduces the risk of punctures.
The L-2B Skid Steer Loader Tire is available from various manufacturers and suppliers. Customization options may be available, such as customized logos or packaging, depending on the supplier. Please contact your local supplier for more information.
