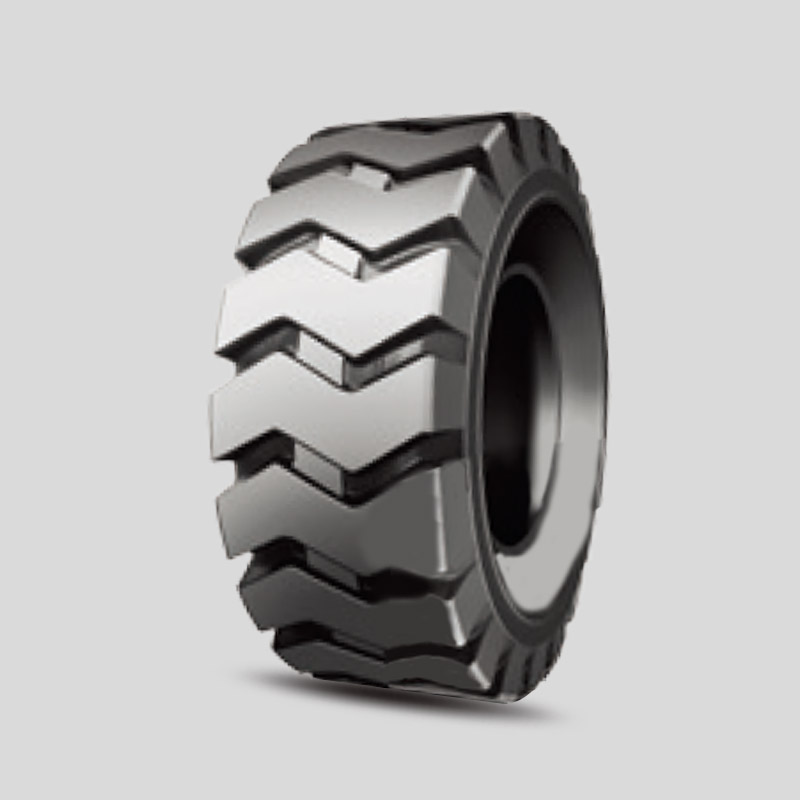

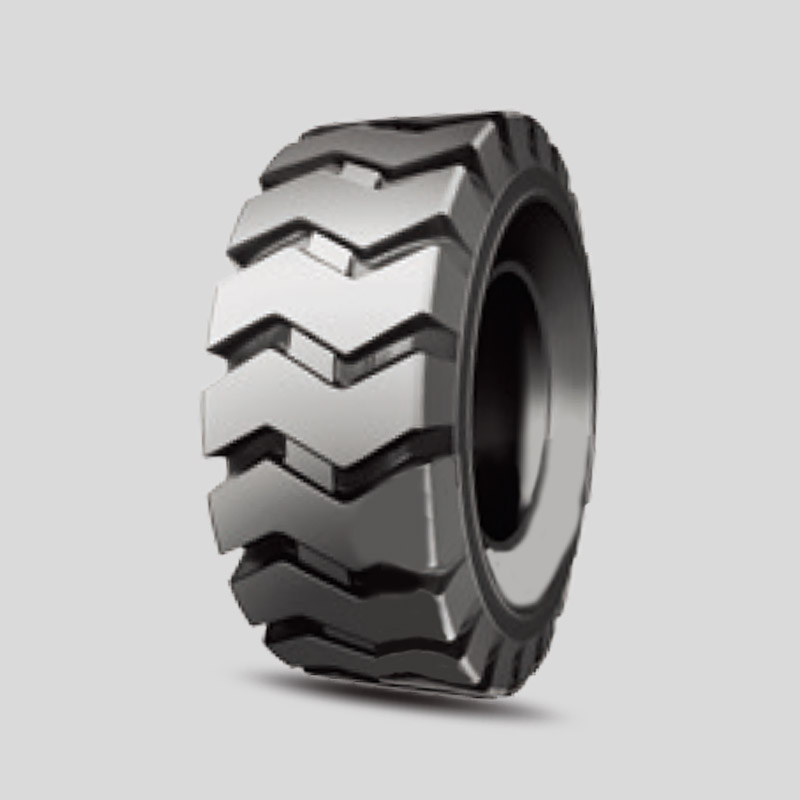

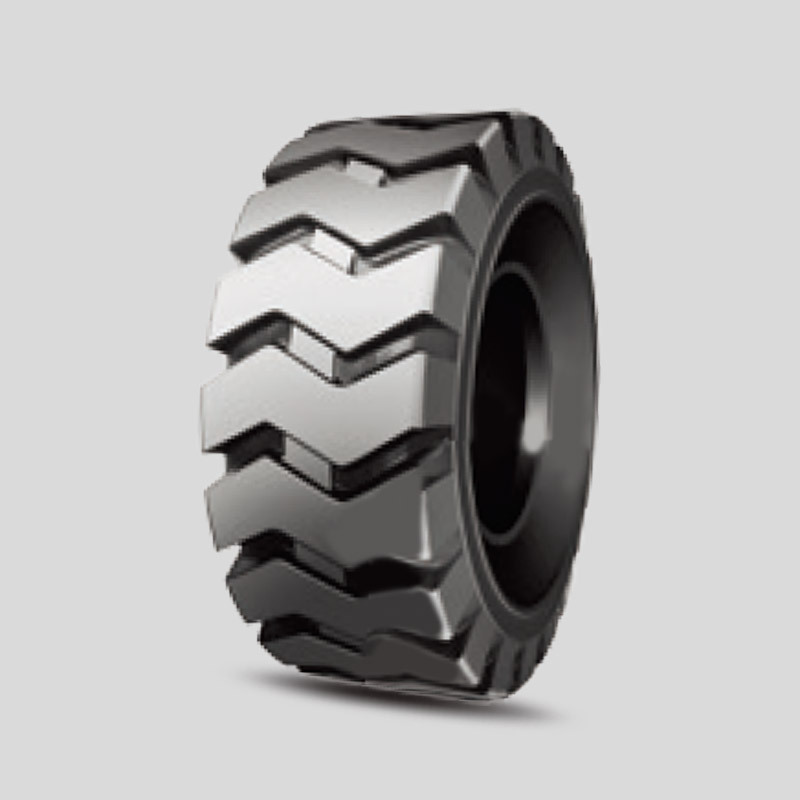

Oxplo Loader E-3Y Tire-Bias is a specialized engineering machinery tire designed for loaders and other similar earthmoving equipment. Its bias design offers optimal stability and durability for demanding work environments.
• Tire Size: 16/70-20 (405/70-24)
• Ply Rating: 14
• Rim Size: 20inch / 24inch
• Outer Diameter: 1175mm
• Section Width: 410mm
• Inflation Pressure: 450kPa (at 10km/h), 350kPa (at 50km/h)
• Maximum Load: 5600kg (at 10km/h), 3350kg (at 50km/h)
| Model | Specification | Ply Rating | Tire Type | Rim | Inflated Size |
Inflation Pressure (kPa) |
Maximum Load | Valve Model | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Outer Diameter (mm) |
Section Width (mm) |
10km/h | 50km/h | 10km/h | 50km/h | ||||||
| E-3Y | 20.5/70-16 | 14 | TT | 10.00F | 890 | 320 | - | 280 | - | 1600 | - |
| Model | Specification | Ply Rating | Tire Type | Rim | Inflated Size |
Inflation Pressure (kPa) |
Maximum Load | Valve Model | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Outer Diameter (mm) |
Section Width (mm) |
10km/h | 50km/h | 10km/h | 50km/h | ||||||
| E-3Y+ | 20.5/70-16 | 14 | TT | 10.00F | 925 | 340 | - | 280 | - | 1600 | - |
|
16/70-20 (405/70-20) |
14 | TT | 13(SDC) | 1075 | 410 | 450 | 350 | 5150 | 2900 | - | |
|
16/70-20 (405/70-24) |
14 | TT | 13(SDC) | 1175 | 410 | 450 | 350 | 5600 | 3350 | - | |
| Model | Specification | Ply Rating | Tire Type | Rim | Inflated Size |
Inflation Pressure (kPa) |
Maximum Load | Valve Model | |
|---|---|---|---|---|---|---|---|---|---|
|
Outer Diameter (mm) |
Section Width (mm) |
50km/h | |||||||
| E-3/L-3 | 7.50-16 | 10 | TT | 6.00G | 810 | 215 | 420 | 920 | Z1-01-3 |
| 8.25-16 | 10 | TT | 6.50H | 855 | 235 | 350 | 1065 | Z1-01-4 | |
| 12.00-16 | 14 | TT | 6.50H | 890 | 255 | 420 | 1540 | Z1-01-4 | |
| 14.00/90-16 | 14 | TT | 6.50H | 890 | 280 | 350 | 2760 | Z1-01-4 | |
| 20.5/70-16 | 14 | TT | 10.00F | 950 | 350 | 280 | 1600 | Z1-01-4 | |
| 16/70-20 | 14 | TT | 13(SDC) | 1075 | 410 | 350 | 2900 | - | |
1. Bias Construction: The bias construction of Loader E-3Y Tire-Bias provides excellent stability and handling, enabling precise control and maneuverability.
2. Durable Materials: Manufactured using high-quality materials, Loader E-3Y Tire-Bias is resistant to wear and tear, ensuring long-lasting performance.
3. Strong Sidewalls: Reinforced sidewalls offer added protection against punctures and impacts, ensuring Loader E-3Y Tire-Bias remains in service for longer.
4. Suitable Rim Sizes: Available in 20 inch and 24 inch rim sizes, providing compatibility with a wide range of loaders.
• Excellent Traction: Loader E-3Y Tire-Bias's tread pattern provides superior traction, ensuring efficient power transfer and reduced slippage.
• Low Pressure Design: The low-pressure design allows for more even wear and reduced impact on the machine's suspension system.
• Selling Units: Sold as a single item.
• Package Size: 89x32x89 cm
• Gross Weight: 68.000 kg
• Lead Time: 7 days for quantities 1-10 units; lead time for larger quantities can be negotiated.
• Customized logo printing is available with a minimum order of 2 units.
• Customized packaging is also offered with a minimum order of 2 units.
In summary, the Loader E-3Y Tire-Bias Tire is a reliable and durable option for loaders and other earthmoving equipment, offering excellent stability, traction, and durability in demanding work environments.
