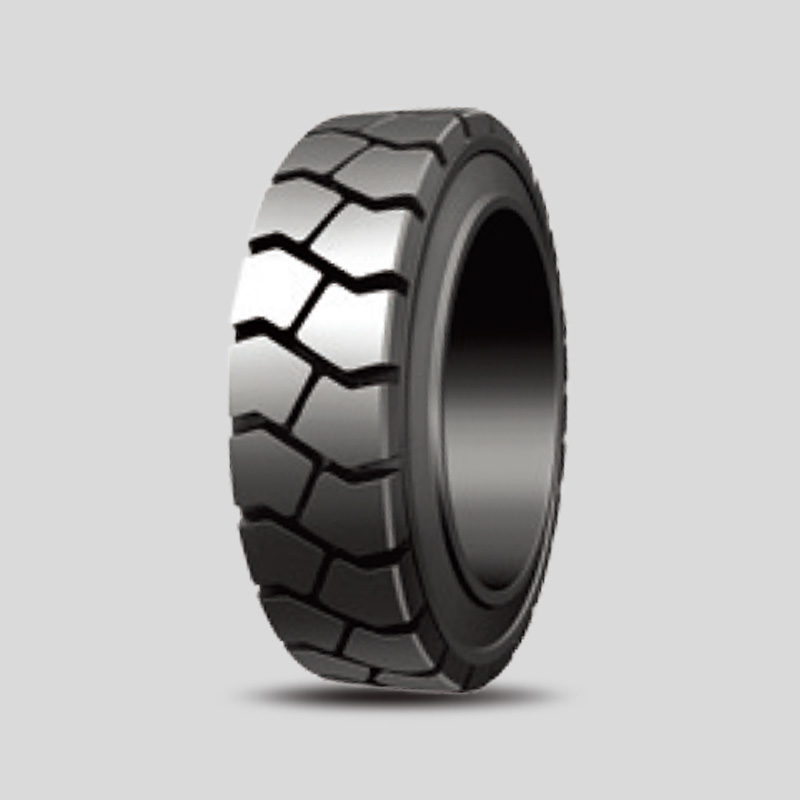

For 20+ years, Qingdao Oxplo Tire excels in China's tire industry. The TR Port Forklift Solid Tyre is a high-performance, solid rubber tire designed specifically for forklifts and other industrial vehicles operating in port and heavy-duty environments. Its robust construction and superior durability ensure reliable performance and extended service life.
● Sizes Available: Multiple sizes ranging from 5.00-8 to larger sizes, suitable for a wide range of forklifts and industrial vehicles.
● Tread Depth: Deep tread design provides superior traction and grip in all conditions.
● Rim Compatibility: Compatible with standard rim sizes.
● Load Capacity: Capable of handling heavy loads and demanding operations in port and industrial environments.
(Model) |
(Specification) |
(Inflated Size) |
(Pattern) |
(Maximum Tire Load At Different Maximum Speeds) /kg |
||||||
(Balanced Counterweight Forklift) |
(Industrial Vehicles) |
|||||||||
(Outer Diameter) mm |
(Section Width) mm |
SM | TR | 10km/h | 16km/h | 16km/h | ||||
(Driving Wheel) |
(Steering Wheel) |
(Driving Wheel) |
(Steering Wheel) |
|||||||
SM/TR/RIB/FP | 9x5-5 | 229 | 127 | * | 890 | 790 | 785 | 715 | 685 | |
10x5-6.25 | 254 | 127 | RIB | 955 | 850 | 845 | 765 | 735 | ||
10x4-6.5 | 254 | 102 | * | 720 | 640 | 635 | 580 | 555 | ||
10x4.75-6.5 | 254 | 121 | * | 885 | 790 | 785 | 710 | 680 | ||
10x5-6.5 | 254 | 127 | * | 940 | 835 | 830 | 755 | 725 | ||
10.5x5-6.5 | 267 | 127 | * | 1000 | 890 | 885 | 805 | 770 | ||
12x5-7.125 | 305 | 127 | FP | 1215 | 1000 | 1085 | 910 | 870 | ||
12x4.5-8 | 305 | 114 | * | 970 | 865 | 860 | 780 | 745 | ||
12x5-8 | 305 | 127 | * | 1105 | 980 | 975 | 885 | 850 | ||
12x5.5-8 | 305 | 140 | * | 1240 | 1100 | 1095 | 995 | 950 | ||
13x4.5-8 | 330 | 114 | * | 1040 | 925 | 920 | 835 | 800 | ||
13.5x4.5-8 | 343 | 114 | * | 1065 | 950 | 945 | 855 | 820 | ||
13.5x5.5-8 | 343 | 140 | * | * | 1400 | 1245 | 1235 | 1125 | 1075 | |
13.5x6.5-8 | 343 | 165 | * | 1730 | 1540 | 1530 | 1390 | 1330 | ||
14x4.5-8 | 356 | 114 | * | * | 1085 | 965 | 960 | 870 | 835 | |
14x5-10 | 356 | 127 | * | * | 1240 | 1100 | 1095 | 995 | 955 | |
15x5-11.25 | 381 | 127 | * | * | 1290 | 1150 | 1145 | 1040 | 995 | |
15x6-11.25 | 381 | 152 | * | * | 1600 | 1425 | 1415 | 1285 | 1230 | |
15x8-11.25 | 381 | 203 | * | 2215 | 1975 | 1960 | 1780 | 1705 | ||
16x5-10.5 | 406 | 127 | * | * | 1400 | 1245 | 1240 | 1125 | 1075 | |
16x6-10.5 | 406 | 152 | * | * | 1775 | 1580 | 1570 | 1430 | 1365 | |
16x7-10.5 | 406 | 178 | * | * | 2155 | 1915 | 1905 | 1730 | 1655 | |
16.25x5-11.25 | 413 | 127 | * | * | 1415 | 1260 | 1250 | 1135 | 1090 | |
16.25x6-11.25 | 413 | 152 | * | * | 1780 | 1585 | 1575 | 1430 | 1370 | |
16.25x7-11.25 | 413 | 178 | * | * | 2150 | 1915 | 1900 | 1730 | 1655 | |
18x5-12.125 | 457 | 127 | * | * | 1525 | 1355 | 1350 | 1225 | 1175 | |
18x6-12.125 | 457 | 152 | * | * | 1945 | 1735 | 1720 | 1565 | 1500 | |
18x7-12.125 | 457 | 178 | * | * | 2370 | 2110 | 2095 | 1905 | 1820 | |
18x8-12.125 | 457 | 203 | * | * | 2790 | 2485 | 2470 | 2245 | 2145 | |
18x9-12.125 | 457 | 229 | * | * | 3215 | 2860 | 2840 | 2580 | 2470 | |
20x8-16 | 508 | 203 | * | 2795 | 2490 | 2475 | 2250 | 2150 | ||
21x6-15 | 533 | 152 | * | 2185 | 1945 | 1935 | 1760 | 1680 | ||
21x7-15 | 533 | 178 | * | * | 2665 | 2370 | 2355 | 2140 | 2050 | |
21x8-15 | 533 | 203 | * | * | 3140 | 2795 | 2780 | 2525 | 2415 | |
21x9-15 | 533 | 229 | * | * | 3620 | 3220 | 3200 | 2910 | 2785 | |
22x8-16 | 559 | 203 | * | * | 3255 | 2895 | 2880 | 2615 | 2500 | |
22x9-16 | 559 | 229 | * | * | 3745 | 3335 | 3315 | 3010 | 2880 | |
22x10-16 | 559 | 254 | * | 4240 | 3775 | 3750 | 3410 | 3265 | ||
22x12-16 | 559 | 305 | * | * | 5230 | 4655 | 4625 | 4205 | 4025 | |
22x14-16 | 559 | 356 | * | * | 6220 | 5535 | 5500 | 5000 | 4785 | |
22x16-16 | 559 | 406 | * | 7205 | 6415 | 6375 | 5795 | 5545 | ||
28x10-22 | 711 | 254 | * | 5080 | 4525 | 4495 | 4085 | 3910 | ||
28x12-22 | 711 | 305 | * | 6265 | 5575 | 5545 | 5035 | 4820 | ||
28x14-22 | 711 | 356 | * | 7450 | 6630 | 6590 | 5990 | 5730 | ||
28x16-22 | 711 | 406 | * | 8635 | 7685 | 7640 | 6940 | 6645 | ||
33x14-22 | 838 | 356 | * | 9275 | 7585 | 8070 | 6625 | 6020 | ||
36x12-30 | 915 | 305 | * | 7565 | 6735 | 6695 | 6080 | 5820 | ||
40x16-30 | 1016 | 406 | * | 12595 | 11210 | 11140 | 10125 | 9690 | ||
250x105-170 | 250 | 105 | * | 730 | 650 | 645 | 585 | 560 | ||
330x145-180 | 330 | 145 | * | 1540 | 1265 | 1375 | 1155 | 1100 | ||
330x145-194 | 330 | 145 | * | 1535 | 1260 | 1370 | 1150 | 1095 | ||
405x130-305 | 405 | 130 | * | 1400 | 1250 | 1240 | 1125 | 1080 | ||
405x220-305 | 405 | 220 | * | 2570 | 2285 | 2270 | 2065 | 1975 | ||
405x260-305 | 405 | 260 | * | 3060 | 2720 | 2705 | 2460 | 2355 | ||
425x200-305 | 425 | 220 | * | 2495 | 2220 | 2210 | 2005 | 1920 | ||
450x300-305 | 450 | 300 | * | 4315 | 3840 | 3820 | 3470 | 3320 | ||
540x200-410 | 540 | 200 | * | 3035 | 2700 | 2685 | 2440 | 2335 | ||
550x160-410 | 550 | 160 | * | 2370 | 2110 | 2095 | 1905 | 1825 | ||
645x250-410 | 645 | 250 | * | 4870 | 4335 | 4310 | 3915 | 3745 | ||
645x300-410 | 645 | 300 | * | 6140 | 5465 | 5430 | 4935 | 4725 | ||
660x250-480 | 660 | 250 | * | 4845 | 4310 | 4285 | 3895 | 3725 | ||
610x100 | 610 | 100 | * | 1460 | 1200 | 1300 | 1095 | 1040 |
1. Solid Rubber Construction: The TR Port Forklift Solid Tyre is made of high-quality solid rubber, providing excellent durability and resistance to punctures, tears, and abrasions.
2. Optimized Design: The TR Port Forklift Solid Tyre features a deep tread design for superior traction and grip, especially in off-road and rough terrain applications. The steel-reinforced base ensures stability and durability under heavy loads.
3. Abrasion Resistant Compound: The special abrasion-resistant compound used in the tire's construction provides extended wear life, reducing the need for frequent replacements.
4. Wide Size Range: The TR Port Forklift Solid Tyre is available in various sizes to fit different industrial vehicles, ensuring compatibility and optimized performance.
● Durability: Solid rubber construction and abrasion-resistant compound ensure extended service life and reduced maintenance costs.
● Stability: Steel-reinforced base and optimized tread design provide excellent stability and traction, even under heavy loads.
● Versatility: Wide size range ensures compatibility with different industrial vehicles, meeting various application requirements.
● Installation: Professional installation is recommended to ensure proper fit and alignment.
● Maintenance: Regular inspections and cleaning of the tire surface are recommended to maintain optimal performance.
For inquiries, quotes, or more information about the TR Port Forklift Solid Tyre, please contact our sales team. We are committed to providing you with the best possible products and services for your industrial vehicle needs.
