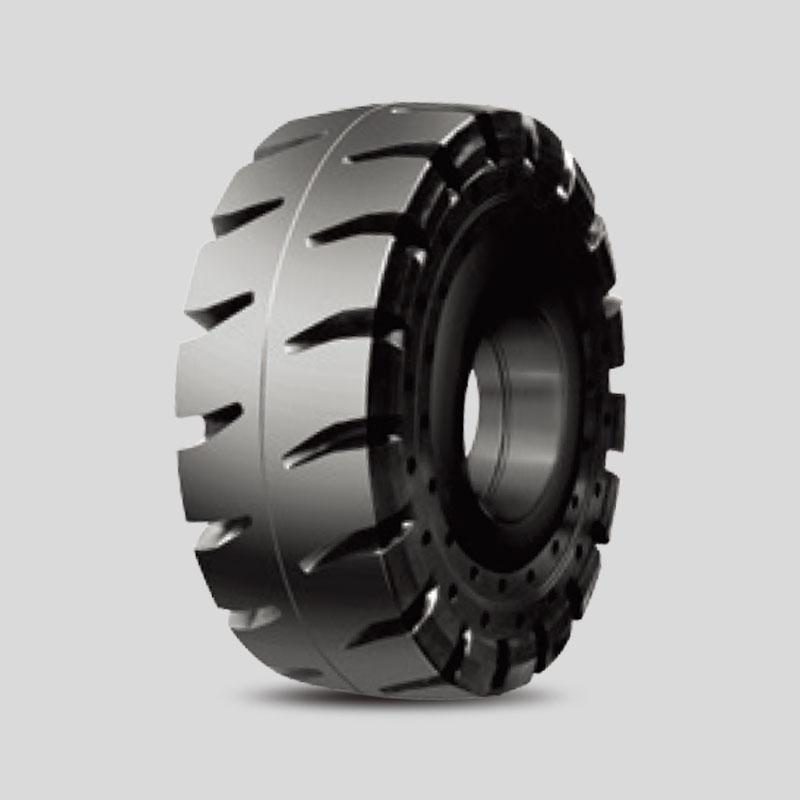

Qingdao Oxplo Tire is a China Cranes Tire Manufacturers. Cranes tires are specifically designed for crane applications, providing superior durability, stability, and traction for mobile cranes operating in various environments. With advanced technology and materials, cranes tires ensure efficient and safe operations for crane equipment.
|
(Model) |
(Specification) |
(Rim) |
(Inflated Size) |
/kg (Maximum Tire Load At Different Maximum Speeds) |
|||||||
|
(Outer Diameter) mm |
(Section Width) mm |
0km/h | 2km/h | 6km/h | 10km/h | 40km/h | 50km/h | Application | |||
| L077 | 12.00-20/8.5 | 8.5 | 1103 | 290.00 | - | 7560 | 6865 | 5065 | - | Trailers, mining heavy-duty trucks | |
| 12.00-24/8 5 | 8.5 | 1235 | 303.00 | - | 8040 | 7305 | 5390 | - | Trailers, mining heavy-duty trucks | ||
| 14 00-24/10 0 | 10 | 1360 | 365.00 | - | 11100 | 10085 | 7440 | - | Trailers, mining heavy-duty trucks | ||
| 16.00-25/11.25 | 11.25/2.0 | 1535 | 430.00 | - | 15000 | 13625 | - | - | 25T heavy-duty forklift | ||
| 18.00-25/13.0 | 13 00/2.5 | 1620 | 500.00 | 30600 | 27200 | 24600 | 22900 | - | - | gantry crane | |
| 21.00-25/15.0 | 15.00/3.0 | 1750 | 570.00 | 36100 | 32100 | 29100 | 27100 | - | - | gantry crane | |
| 17.5-25/14.0 | 14.00/1.5 | 1350 | 445.00 | - | - | - | 8250 | - | 5000 | Wheel loader | |
| 20.5-25/17.0 | 17.00/2.0 | 1490 | 520.00 | - | - | - | 11500 | - | 7500 | Wheel loader | |
| 235-25/19.5 | 19 50/2.5 | 1610 | 600.00 | - | - | - | 13600 | - | 8750 | Wheel loader | |
| 26 5-25/22.0 | 22.00/3.0 | 1750 | 675.00 | - | - | - | 17000 | - | 11200 | Wheel loader | |
| 29.5-25/25.0 | 25.00/3.5 | 1855 | 750.00 | - | - | - | 19800 | - | 12950 | Wheel loader | |
1. Size and Dimensions:
o Various sizes are available to fit different crane models and rim specifications. For example, the 18.00-25/13.0 cranes tire is a popular choice.
2. Construction:
o Made of high-quality rubber compounds for maximum durability and wear resistance.
o Reinforced sidewall construction for added strength and stability.
o Radial tire design optimized for crane applications.
3. Certifications:
o Complies with international safety and quality standards such as ECE, ISO, and DOT.
1. Durability:
o Specially formulated rubber compound provides extended service life and reduced downtime.
o Able to handle heavy loads and uneven terrains with ease.
2. Stability:
o Reinforced sidewall construction ensures stability and prevents sidewall damage.
o Radial tire design provides even wear and smooth operation.
3. Traction:
o Deep tread pattern ensures maximum traction and grip in all conditions.
o Optimized for both on-road and off-road crane operations.
Available for customization based on specific requirements, such as tread pattern, material compound, and additional reinforcement.
· Manufacturer's warranty available on selected products.
· Technical support and after-sales service provided by our team of experts.
