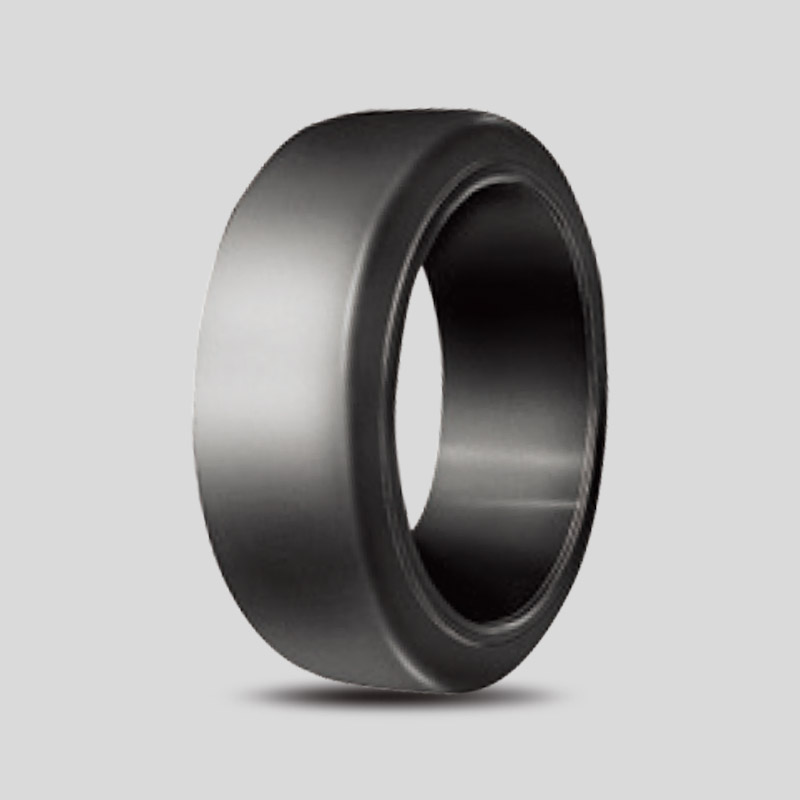

Aircraft Tow Bar SM Tyres

Qingdao Oxplo Tire Co., Ltd. is a promising tire manufacturer with a steadfast commitment to quality, innovation, and unparalleled customer satisfaction. Leveraging its advanced manufacturing capabilities, the company is positioned competitively in the tire industry, offering high-performance tires for a diverse range of applications, including specialized Aircraft Tow Bar SM Tyres for aircraft towing. With a clear vision and mission, Qingdao Oxplo Tire Co., Ltd. is poised for sustained growth and success in the global tire market.

Send Inquiry

Product Description

Introduction

Qingdao Oxplo Tire Co., Ltd. is the Aircraft Tow Bar SM Tyres Suppliers. These tyres are manufactured to the highest standards, meeting or exceeding industry requirements for performance and durability. Aircraft Tow Bar SM Tyres are specifically designed for use with aircraft tow bars, ensuring reliable and safe towing operations.

Aircraft Tow Bar SM Tyres

Technical Specifications

(Model)	(Specification)		(Inflated Size)		/kg (Maximum Tire Load At Different Maximum Speeds)
(Model)	(Metric System)	(British System)	(Outer Diameter) mm	(Section Width) mm	(Static)	5km/h	10km/h
SM	190×40	/	190	40	355	305	275

Model	Specification	Inflated Size		Pattern		Maximum Tire Load At Different Maximum Speeds
		Inflated Size		Pattern		Balanced Counterweight Forklift				Industrial Vehicles
		Outer Diameter/ mm	Section Width/ mm	SM	TR	10km/h		16km/h		16km/h
		Outer Diameter/ mm	Section Width/ mm	SM	TR	Driving Wheel	Steering Wheel	Driving Wheel	Steering Wheel	16km/h
SM	9x5-5	229	127	*		890	790	785	715	685
	10x5-6.25	254	127	RIB		955	850	845	765	735
	10x4-6.5	254	102	*		720	640	635	580	555
	10x4.75-6.5	254	121	*		885	790	785	710	680
	10x5-6.5	254	127	*		940	835	830	755	725
	10.5x5-6.5	267	127	*		1000	890	885	805	770
	12x5-7.125	305	127	FP		1215	1000	1085	910	870
	12x4.5-8	305	114	*		970	865	860	780	745
	12x5-8	305	127	*		1105	980	975	885	850
	12x5.5-8	305	140		*	1240	1100	1095	995	950
	13x4.5-8	330	114	*		1040	925	920	835	800
	13.5x4.5-8	343	114	*		1065	950	945	855	820
	13.5x5.5-8	343	140	*	*	1400	1245	1235	1125	1075
	13.5x6.5-8	343	165	*		1730	1540	1530	1390	1330
	14x4.5-8	356	114	*	*	1085	965	960	870	835
	14x5-10	356	127	*	*	1240	1100	1095	995	955
	15x5-11.25	381	127	*	*	1290	1150	1145	1040	995
	15x6-11.25	381	152	*	*	1600	1425	1415	1285	1230
	15x8-11.25	381	203	*		2215	1975	1960	1780	1705
	16x5-10.5	406	127	*	*	1400	1245	1240	1125	1075
	16x6-10.5	406	152	*	*	1775	1580	1570	1430	1365
	16x7-10.5	406	178	*	*	2155	1915	1905	1730	1655
	16.25x5-11.25	413	127	*	*	1415	1260	1250	1135	1090
	16.25x6-11.25	413	152	*	*	1780	1585	1575	1430	1370
	16.25x7-11.25	413	178	*	*	2150	1915	1900	1730	1655
	18x5-12.125	457	127	*	*	1525	1355	1350	1225	1175
	18x6-12.125	457	152	*	*	1945	1735	1720	1565	1500
	18x7-12.125	457	178	*	*	2370	2110	2095	1905	1820
	18x8-12.125	457	203	*	*	2790	2485	2470	2245	2145
	18x9-12.125	457	229	*	*	3215	2860	2840	2580	2470
	20x8-16	508	203	*		2795	2490	2475	2250	2150
	21x6-15	533	152	*		2185	1945	1935	1760	1680
	21x7-15	533	178	*	*	2665	2370	2355	2140	2050
	21x8-15	533	203	*	*	3140	2795	2780	2525	2415
	21x9-15	533	229	*	*	3620	3220	3200	2910	2785
	22x8-16	559	203	*	*	3255	2895	2880	2615	2500
	22x9-16	559	229	*	*	3745	3335	3315	3010	2880
	22x10-16	559	254		*	4240	3775	3750	3410	3265
	22x12-16	559	305	*	*	5230	4655	4625	4205	4025
	22x14-16	559	356	*	*	6220	5535	5500	5000	4785
	22x16-16	559	406	*		7205	6415	6375	5795	5545
	28x10-22	711	254	*		5080	4525	4495	4085	3910
	28x12-22	711	305	*		6265	5575	5545	5035	4820
	28x14-22	711	356	*		7450	6630	6590	5990	5730
	28x16-22	711	406	*		8635	7685	7640	6940	6645
	33x14-22	838	356	*		9275	7585	8070	6625	6020
	36x12-30	915	305	*		7565	6735	6695	6080	5820
	40x16-30	1016	406	*		12595	11210	11140	10125	9690
	250x105-170	250	105	*		730	650	645	585	560
	330x145-180	330	145	*		1540	1265	1375	1155	1100
	330x145-194	330	145	*		1535	1260	1370	1150	1095
	405x130-305	405	130	*		1400	1250	1240	1125	1080
	405x220-305	405	220	*		2570	2285	2270	2065	1975
	405x260-305	405	260	*		3060	2720	2705	2460	2355
	425x200-305	425	220	*		2495	2220	2210	2005	1920
	450x300-305	450	300	*		4315	3840	3820	3470	3320
	540x200-410	540	200	*		3035	2700	2685	2440	2335
	550x160-410	550	160	*		2370	2110	2095	1905	1825
	645x250-410	645	250	*		4870	4335	4310	3915	3745
	645x300-410	645	300	*		6140	5465	5430	4935	4725
	660x250-480	660	250	*		4845	4310	4285	3895	3725
	610x100	610	100	*		1460	1200	1300	1095	1040

Aircraft Tow Bar SM Tyres

Size: Available in multiple sizes to suit different aircraft tow bar applications.
Weight: Lightweight construction reduces overall tow bar weight, improving maneuverability.
Pressure Rating: Rated for high pressures, ensuring safe operation at maximum loads.

Aircraft Tow Bar SM Tyres

Key Features

• Durability: Constructed from high-quality materials, the Aircraft Tow Bar SM Tyres are designed to withstand the rigors of repeated towing operations, maintaining optimal performance over extended periods of use.
• Traction: The unique tread pattern of the Aircraft Tow Bar SM Tyres provides excellent traction, ensuring stable and secure towing, even in adverse weather conditions.
• Load Capacity: These Aircraft Tow Bar SM Tyres are rated for heavy loads, making them suitable for towing even the largest aircraft with ease.
• Ease of Use: The Aircraft Tow Bar SM Tyres are designed for quick and easy installation on aircraft tow bars, minimizing downtime and maximizing operational efficiency.

Aircraft Tow Bar SM Tyres

Safety Considerations

Regular inspection of the Aircraft Tow Bar SM Tyres is recommended to ensure they are in good working order.
Replacement of worn or damaged tyres should be performed immediately to maintain safe towing operations.

Aircraft Tow Bar SM Tyres

Conclusion

The Aircraft Tow Bar SM Tyres are an essential component for any aircraft towing operation. Their durability, traction, and load capacity make them the ideal choice for ensuring safe and efficient towing of aircraft. For more information or to purchase these tyres, please contact your local aircraft towing equipment supplier.

Aircraft Tow Bar SM Tyres
