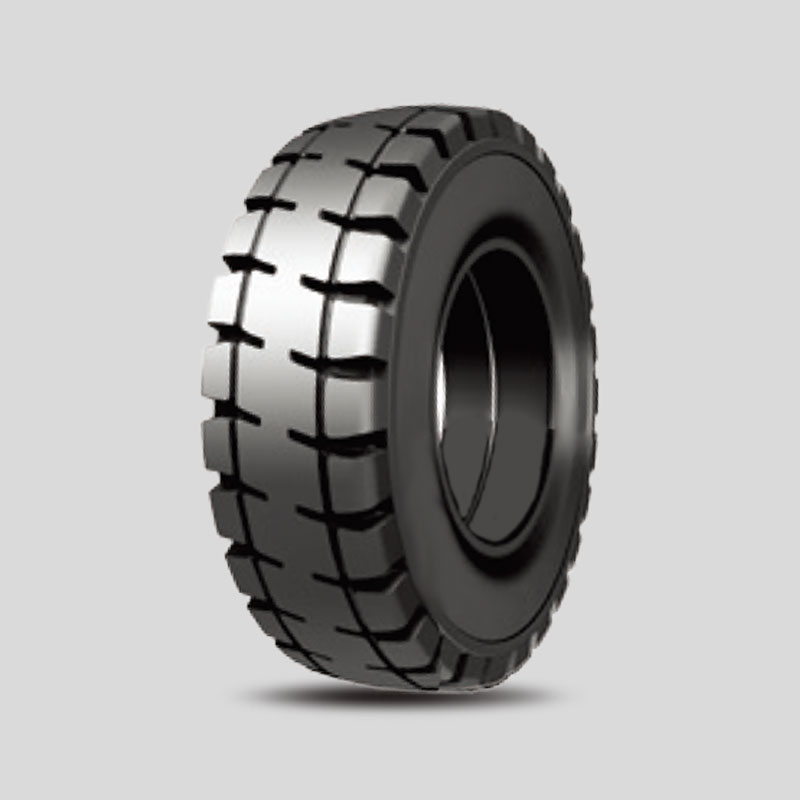

Qingdao Oxplo Tire Co., Ltd. is a China Electric Forklift Tyres manufacturer. The K3 Electric Forklift Tyres are designed specifically for electric forklifts, providing excellent performance, durability, and safety. With a focus on meeting the unique demands of electric-powered material handling equipment, these tyres offer superior traction, load-bearing capacity, and operator comfort.
|
(Model) |
(Specification) |
(Rim) |
(Inflated Size) |
/kg (Maximum Tire Load At Different Maximum Speeds) |
|||||
|
(Balanced Counterweight Forklift) |
(Industrial Vehicles) |
||||||||
|
(Outer Diameter) mm |
(Section Width) mm |
25km/h | 6km/h | 10km/h | 25km/h | ||||
|
(Driving Wheel) |
(Steering Wheel) |
||||||||
| K3 | 4.00-4/2.50 | 2.50C-4 | 300 | 95.00 | 525 | 410 | - | - | - |
| 3.50-5/3.00 | 3.00SP-5 | 302 | 98.00 | 670 | 515 | 670 | 610 | 515 | |
| 4.00-8/3.00 | 3.00D-8 | 409 | 102.00 | 950 | 730 | 950 | 860 | 730 | |
| 5.00-8/3.00 | 3.00D-8 | 451 | 124.00 | 1415 | 1090 | 1415 | 1285 | 1090 | |
| 5.00-8/3.50 | 3.50D-8 | ||||||||
| 6.00-9/4.00 | 4.00E-09 | 526 | 142.00 | 1885 | 1450 | 1885 | 1710 | 1450 | |
| 6.50-10/5.00 | 5.00F-10 | 567 | 163.00 | 2340 | 1800 | 2340 | 2125 | 1800 | |
| 7.00-12/5.00 | 5.00S-12 | 660 | 170.00 | 2920 | 2240 | 2920 | 2645 | 2240 | |
| 7.00-15/5.50 | 5.5-15 | 723 | 183.00 | 3545 | 2725 | 3545 | 3215 | 2725 | |
| 7.50-15/5 50 | 5.5-15 | 753 | 194.00 | 3900 | 3000 | 3900 | 3540 | 3000 | |
| 8.25-15/6.50 | 6.5-15 | 815 | 209.00 | 4750 | 3650 | 4750 | 4300 | 3650 | |
| 8.25-20/6.5 | 6.5-20 | 956 | 225.00 | 4380 | 3650 | 4750 | 3880 | 3650 | |
| 8.25-20/7.0 | 7.0-20 | ||||||||
| 9.00-20/6.5 | 6.5-20 | 998 | 237 | 5400 | 4500 | 5850 | 4905 | 4500 | |
| 9.00-20/7.0 | 7.0-20 | ||||||||
| 15x4.5-8/3.00 | 3.00D-8 | 379 | 104 | 1040 | 800 | 1040 | 945 | 800 | |
| 15x4.5-8/3.25 | 3.25I-8 | ||||||||
| 16x6-8/4.33 | 4.33R-8 | 416 | 146 | 1495 | 1150 | 1495 | 1360 | 1150 | |
| 16x6-8/4.33 | 4.33R-8 | 416 | 157 | ||||||
| 18x7-8/4.33 | 4.33R-8 | 455 | 148 | 2145 | 1650 | 2145 | 1945 | 1650 | |
| 21x8-9/6 .00 | 6.00E-09 | 527 | 184 | 2755 | 2120 | 2755 | 2500 | 2120 | |
| 23x9-10/6 50 | 6.50F-10 | 581 | 188 | 3445 | 2650 | 3445 | 3125 | 2650 | |
| 23x10-12/8.00 | 8.00G-12 | 584 | 233 | 3770 | 2900 | 3770 | 3420 | 2900 | |
| 27x10-12/8.00 | 8.00G-12 | 670 | 233 | 3900 | 3000 | 3900 | 3540 | 3000 | |
| 28x9-15/7.0 | 7.0-15 | 699 | 214 | 3900 | 3000 | 3900 | 3540 | 3000 | |
| 28x12.5-15/9.75 | 9.75-15 | 706 | 298 | 5690 | 4375 | 5690 | 5165 | 4375 | |
| 250-15/7.0 | 7.0-15 | 723 | 222 | 4745 | 3650 | 4745 | 4310 | 3650 | |
| 250-15/7.5 | 7.5-15 | ||||||||
| 300-15/8.0 | 8.0-15 | 824 | 250 | 5850 | 4500 | 5850 | 5310 | 4500 | |
| 140/55-9/4.00 | 4.00E-09 | 380 | 129 | 1170 | 900 | 1170 | 1060 | 900 | |
| 180/60-10/5.00 | 5.00F-10 | 455 | 153 | 2410 | 1850 | 2410 | 2180 | 1850 | |
| 200/50-10/6.50 | 6.50F-10 | 456 | 189 | 2470 | 1900 | 2470 | 2240 | 1900 | |
| 355/65-15/9.75 | 9.75-15 | 825 | 286 | 7800 | 6000 | 7085 | 6430 | 5450 | |
● Size Range: Available in multiple sizes to fit various electric forklift models.
● Tread Pattern: Optimized tread pattern for maximum traction and stability.
● Material: High-quality rubber compound for durability and wear resistance.
● Weight: Depending on the size, the tyre weights can range from 20 kg to 200 kg.
1. Durable Construction: The K3 Electric Forklift Tyres are constructed using high-quality materials that ensure long-lasting performance and durability.
2. Optimal Traction: The tyre design provides excellent traction on various surfaces, improving stability and safety while handling loads.
3. Load-Bearing Capacity: K3 Electric Forklift Tyres are capable of supporting heavy loads, ensuring smooth and efficient material handling operations.
4. Low Noise and Vibration: The tyre's design helps reduce noise and vibration, improving operator comfort and reducing fatigue.
● Improved Safety: Excellent traction and stability reduce the risk of accidents.
● Increased Efficiency: Smooth and efficient material handling operations lead to improved productivity.
● Reduced Maintenance: Durable construction and low noise/vibration reduce the need for frequent maintenance and repairs.
The K3 Electric Forklift Tyres are suitable for use in warehouses, distribution centers, manufacturing facilities, and other industrial environments where electric forklifts are used for material handling operations.
● Ordering: Please consult with your local supplier or visit our official website for more information on ordering and pricing.
● Delivery: Delivery times vary depending on the location and availability of the tyres. Please contact us for more details.
